Our racks can be used in warehouses, logistic and storage areas to stack any kind of materials, heavy equipment, tools, and many more which can maximize your space and be organized.
Warehouse Racks
Our racks can be used in warehouses, logistic and storage areas to stack any kind of materials, heavy equipment, tools, and many more which can maximize your space and be organized.

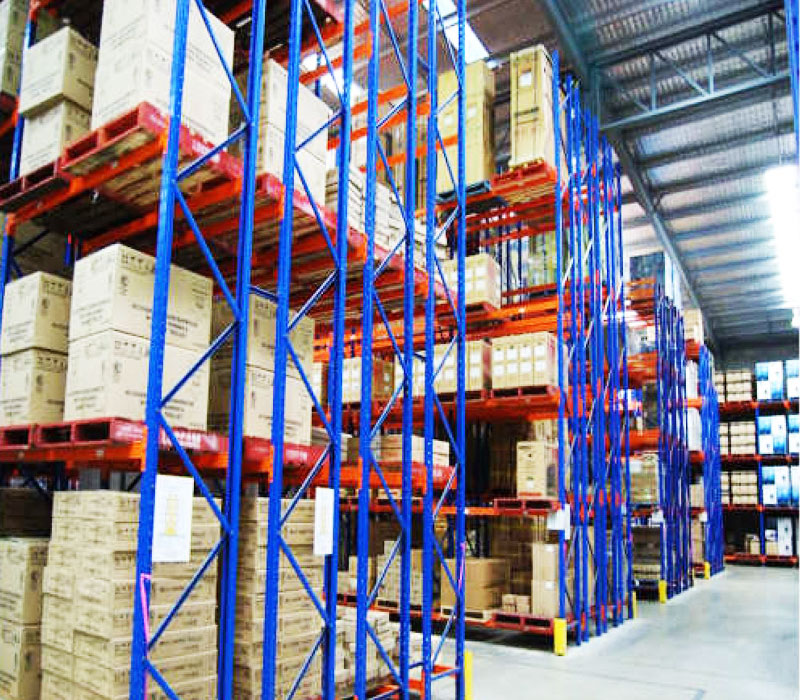

Double Deep Racks
UPRIGHT FRAME
2,000mm - 11,000mm HEIGHT (90*70*2.0/2.5)
900, 1000, 1100 & 1200mm DEPTHBOX BEAM
1300, 2300, 2400, 2700mm LENGTH (2 TONS/LAYER)
80/100/110/120/140*50*1.5PALLET SUPPORT
900, 1000, 1100 & 1200 mm LENGTH (50*30*1.5)ROW SPACER
200, 250, 300 mm LENGTH (50*30*1.5)
Double Deep Racks
UPRIGHT FRAME
2,000mm - 11,000mm HEIGHT (90*70*2.0/2.5)
900, 1000, 1100 & 1200mm DEPTHBOX BEAM
1300, 2300, 2400, 2700mm LENGTH (2 TONS/LAYER)
80/100/110/120/140*50*1.5PALLET SUPPORT
900, 1000, 1100 & 1200 mm LENGTH (50*30*1.5)ROW SPACER
200, 250, 300 mm LENGTH (50*30*1.5)
Drive-in Racks
Cantilever
Most high density drive-in pallet racking systems are little more than conventional pallet racks, adapted and reinforced to meet the stringent demands of drive-in applications. Drive-in racking system provides space efficiency and high volume storage of block stacking, with easy access to pallets.
There are no aisles and no cross beams, providing maximum space efficiency. And because each pallet sits on its own support rails, pallets are no longer stacked on top of each other. Stable and highly space efficient, drive-in racking provides maximum use of storage volume together with fast input and retrieval of pallets.

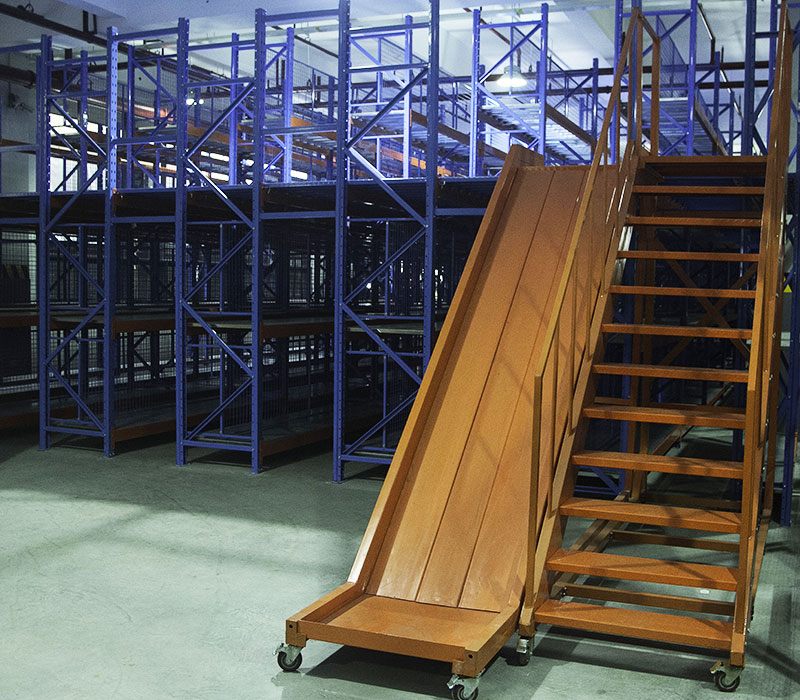

Mezzanine & Multi Tire
Mezzanine usually consists of Upright, Beam, Shelves, Deck, Handrail and Staircase etc. Additional storage floors can be incorporated into the rack with walkways to allow pedestrian access for order picking. This maximizes all available headroom and is ideal for storing a wide variety of packaged goods for hand picking. It is the ideal solution for the utilizing of warehouse’s height and space, also can accommodate sophisticated automated picking system.
Mezzanine & Multi Tire
Mezzanine usually consists of Upright, Beam, Shelves, Deck, Handrail and Staircase etc. Additional storage floors can be incorporated into the rack with walkways to allow pedestrian access for order picking. This maximizes all available headroom and is ideal for storing a wide variety of packaged goods for hand picking. It is the ideal solution for the utilizing of warehouse’s height and space, also can accommodate sophisticated automated picking system.

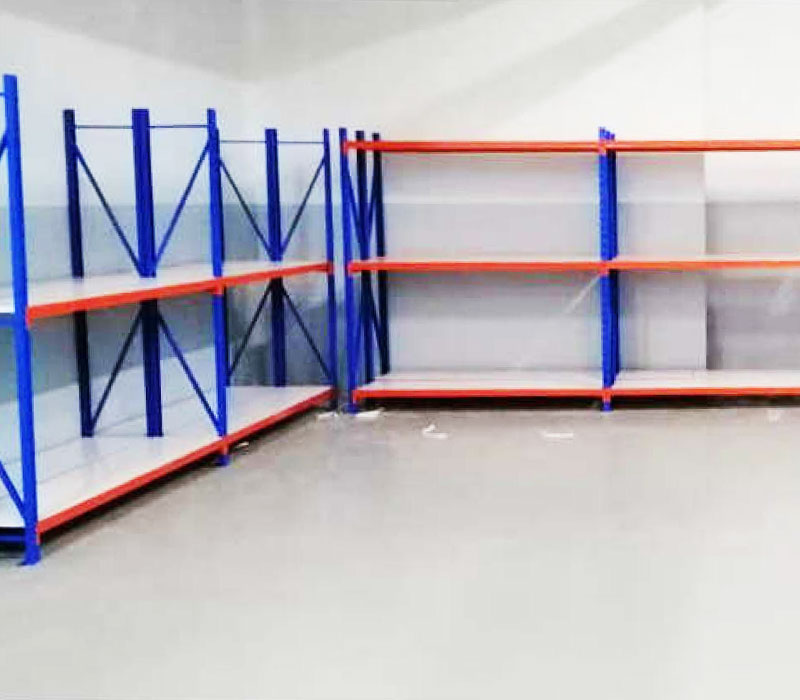

Light Duty Racks
300kgs/150kgs/LAYER
Specification
HEIGHT
2000LENGTH
1800/1200DEPTH
400

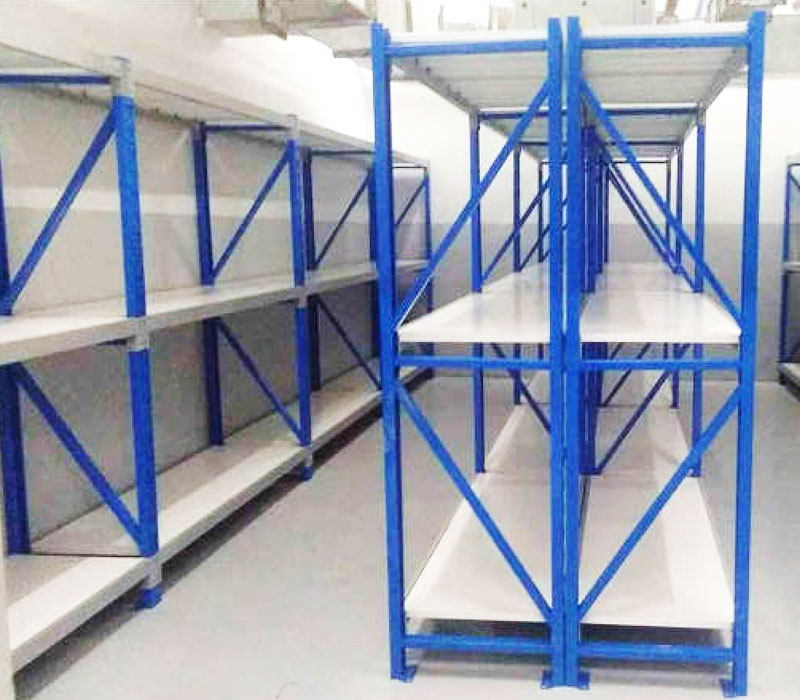

Medium Duty Racks
300kgs/LAYER
Specification
HEIGHT
2000LENGTH
1800DEPTH
600
Medium and Light Duty Shelving is widely used for hand loaded applications. With a wide range of heights, depth, length and easy adjustment. Medium and Light Duty Shelving is a quick and easy storage solution for stores, workshops, warehouses, etc. There is no need of bolt, rivet, screw to install the racking. Components slot together forming a rigid, durable structure that’s quick and easy to assemble, rearrange or dismantle for relocation.

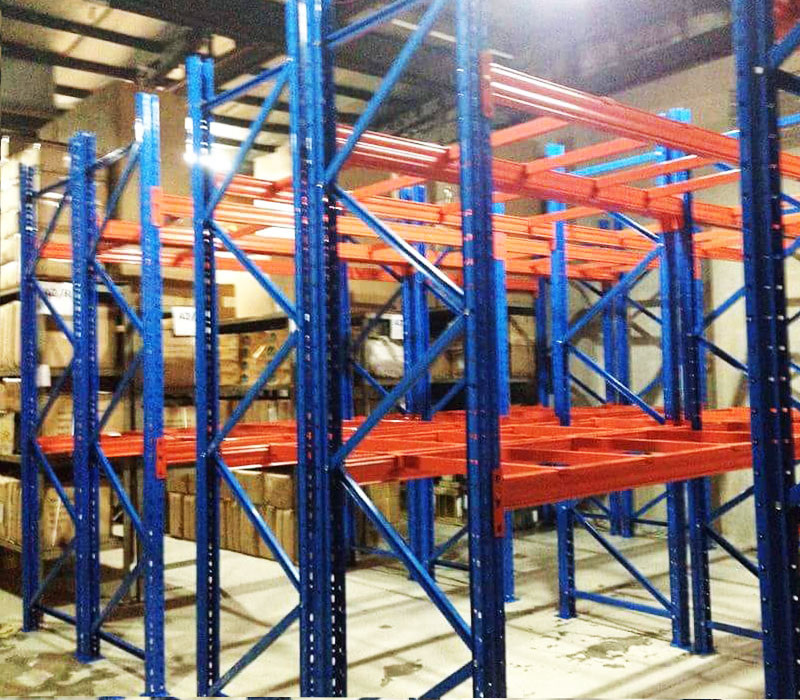

Heavy Duty Racks
STANDARD SIZE
1500 x 3000 – W, 800 – 1200 – D, 2000 – 1000 – HUPRIGHT
60 x 80 T: 1.8 – 2.0, 70 x 90 T: 2.0 – 2.5BEAM SPECIFICATION
50 x 100 T: 1.5, 50 x 120 T: 1.5, 50 x 140 T: 1.5LOADING CAPACITY PER LEVEL
1000 kg
Heavy Duty Racks
STANDARD SIZE
1500 x 3000 – W, 800 – 1200 – D, 2000 – 1000 – HUPRIGHT
60 x 80 T: 1.8 – 2.0, 70 x 90 T: 2.0 – 2.5BEAM SPECIFICATION
50 x 100 T: 1.5, 50 x 120 T: 1.5, 50 x 140 T: 1.5LOADING CAPACITY PER LEVEL
1000 kg
Why Pallet Racks are safe
European Standard FEM 10.2.02 & tests. Pallet racks, tested & certified by SGS, meet and exceed European Standard FEM 10.2.02, well-known as one of the top racking standards in the world.
Selected Raw Steel. Only Grade A raw steem from selcted two of top 10 China largest steel manufacturers is used. Based on enough tests, their steel mechanical properties are approved the most suitable and advantageous for racking loading capacity.
Raw Steel Tested Independently. To 10099 ensure the steel quality. EVERY SINGLE steel batach is tested by an independently 3rd-party authorized testing organization on steel mechanical properties.
Strict 6-step Quality Control. Very strict 6-step quality control covers the whole of production procedures from raw steel purchase to final packing and loading safely.
Specialized Testing Equipment. Benefiting from our own specialized testing equipment or racking posts and beams, safety can be assumed not only by theoretical calculation and simulation, but also by enough real testing data.
General features of Conventional Pallet Racking
Conventional Pallet Racking system offers the best solution for warehouses where a wide range of goods need to be stored on pallets.
General features of Conventional Pallet Racking
Conventional Pallet Racking system offers the best solution for warehouses where a wide range of goods need to be stored on pallets.
Advantages
Rapid handling of almost all types of palletized goods.
Pallets can be located, accessed and moved individually.
Infinitely adjustable and offering a wide range of options and components to accommodate special needs.
Maximizes space used in any warehouse configuration while retaining optimum product accessibility.
Strength and rigidity prevents compression damage to goods.
Bottom level of pallets can be stored on the floor, lowering structure costs.

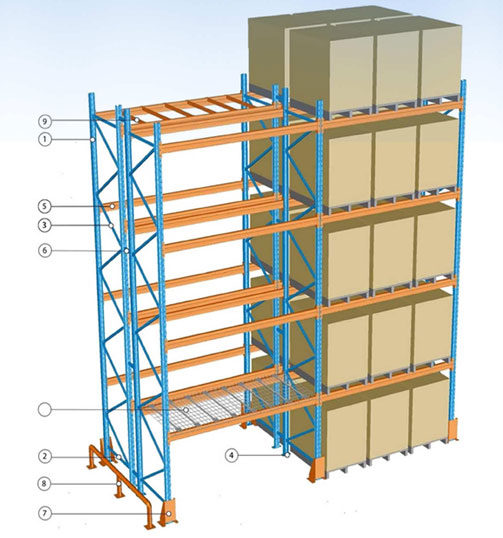

Components & Accessories
- Upright
- Horizontal Bracing
- Diagonal Bracing
- Footplate
- Box Beam
- Row Spacer
- Upright Protector
- Frame Barrier
- Pallet Support Bar
- Mesh Deck
Standard Colors
RAL 5015
Sky Blue
RAL 2004
Pure Orange
Pre-galvanized

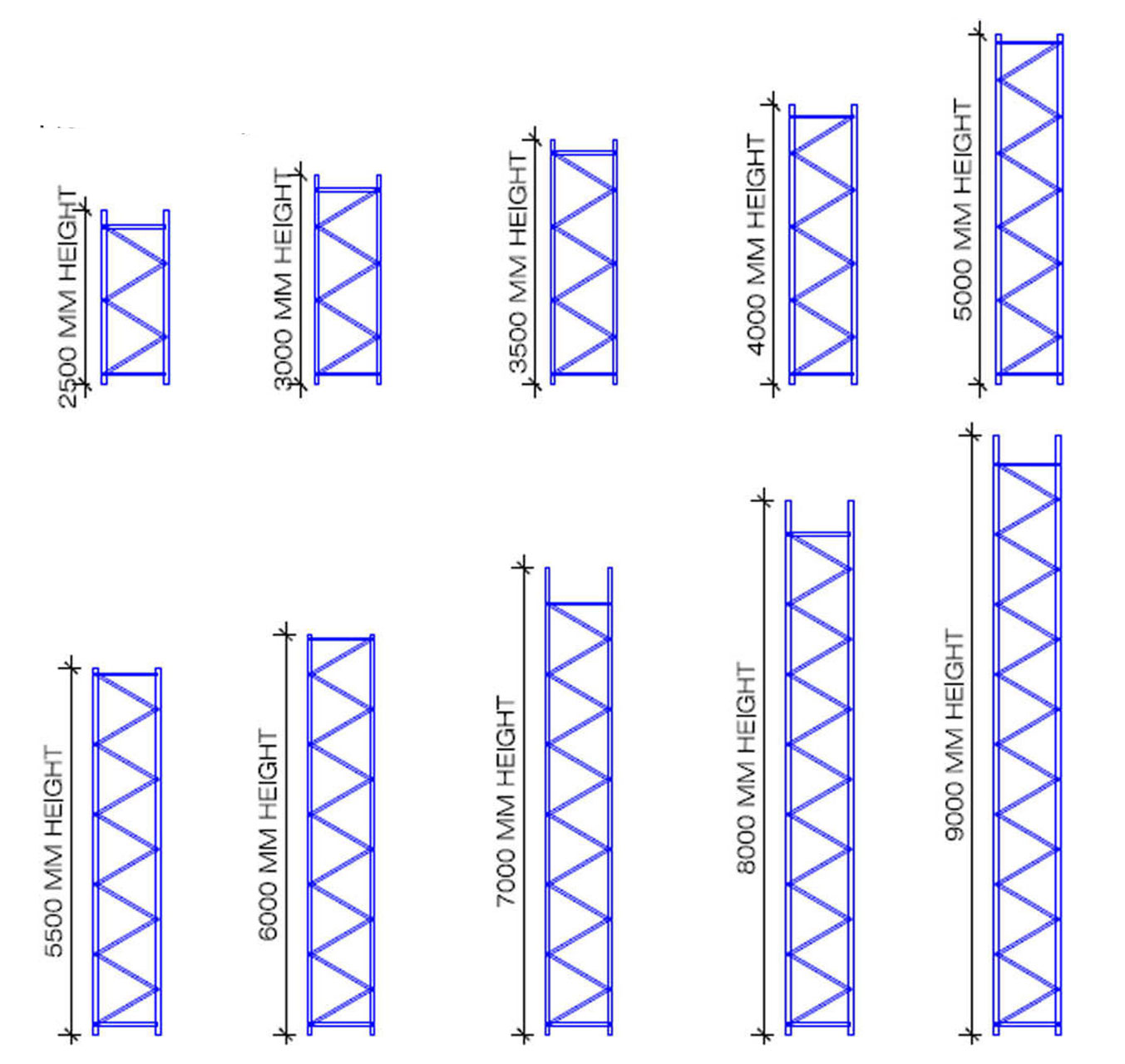

Frame Chart
Frame assembly as normal
Need racking & display solutions? Ask for a quotation today!
